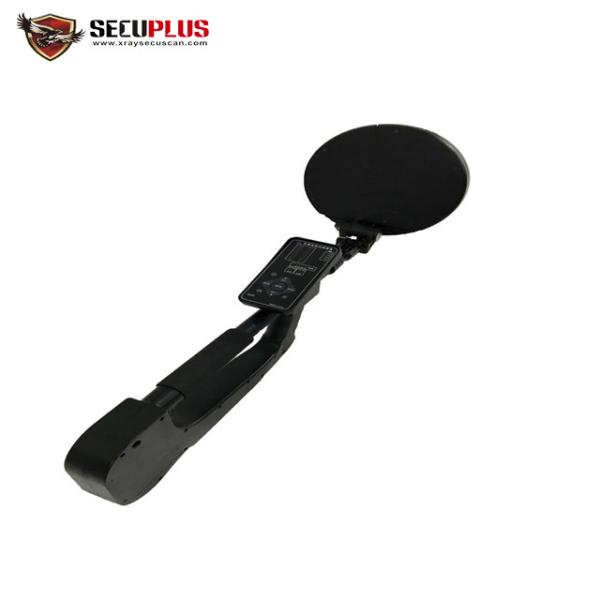

The Non-Linear Junction Detector (NLJD) detects electronic semi-conductor components in walls, floors, ceilings, fixtures, furniture, containers, or other surfaces. The NLJD is made to detect and locate hidden cameras, microphones, and other electronic devices regardless of whether the surveillance device is radiating, hard wired, or turned off.

Efficiency: shorter wavelength model does better at detecting modern, surface-mounted circuitry in normal office environments

Usability: multiple alert methods are available with a line-of-sight antenna mounted display to allow users to visualize target and display simultaneously

Portability: lightweight design is under three pounds and no assembly is required with an integrated telescoping pole

Features:

1. Digitally modulated transmit signal, correlated 2nd & 3rd harmonic response, provide improved detection & minimize interference. And identify the "false" nodes connected by metal and oxides

2. Under the maximum power and maximum sensitivity mode, the range of the detection simulator is at least 2m. The analog device selects a diode with an ordinary random configuration (located in a transparent seal). In the actual measurement, the equipment can penetrate 0.12m thick concrete non load-bearing wall to detect the electronic products.

3. Built-in high capacity rechargeable 29.4V/2200mA lithium battery .

4.Power consumption is not more than 8W.

5. The self controlled power supply can be used for no less than 3 hours.

6. The operation buttons (except power switches) all are located on the screen, which is more convenient for operation. The display is a blue LCD screen, and its high brightness rear projection light source can be used in normal daylight.

7. The weight include packing is less than 8kgs, the receiving station is less than 2.5kgs,

And packing size is 83cm*33cm*29cm.

8. Limit temperature range:－15℃～45℃.

9. Relative air humidity: less than 80%, when the temperature is 25℃.

Applications:

Technical Surveillance Countermeasures (TSCM)

Counter Surveillance

Non-Linear Junction Detection

Locating Hidden Electronics

Locating Electronic Contraband

Intelligence Protection

Executive Protection

Eavesdropping Detection

Surveillance Equipment Detection

Electronic Surveillance Detection
