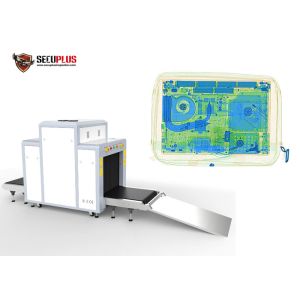

Logistics Xray baggage scanner Manufacture SPX8065 X-ray Inspection Machine

General Specification
● Tunnel Size: 800(W)*650(H)mm
● Conveyor Speed: 0.22m/s
● Conveyor Max Load: 200kg
● Dose per Inspection<1.6μGy/h
● Resolution: 32AWG to 40AWG
● Spatial resolution: Level: dia1.3mm, Vertical:dia1.0mm
● Penetrate resolution: 24WG to 34AWG
● Penetration: 27mm to 40mm Steel
● Film Safety: Guarantee ISO1600 Film
● X-ray Leakage: <0.1μGy/h (at a distance of 5cm From external housing)

X-ray Generator
● Generate direct: Downward
● Generate anger: 80 degree
● Anode Voltage: 100~160Kv
●Anode power: 0.4 to 1.2mA
● Cooling / Duty Cycle: Oil Cooling /100%

Image System

● X-ray Sensor: L-Shaped Photodiode Array (multi-energetic) , 12bit Deep
● Image Processing: Edge enhancement, image strengthening, image lightening, reducing darkening, image returning, image retrieval.
● Zoom: 2,4,8,16 Times Enlarge, Whole screen continuous observation
● Multi-energetic distinguish objects : organic objects in orange, inorganic objects in blue, mixture in green
● High-energy/low energy : switch from high energy to low energy
● Assist to detect drug and explosive powder

Installation Data

● Operation temperature/Humidity: 0℃-45℃/20%-95%(non-condensing)
● Storage Temperature/Humidity: -20℃-60℃/20%-95%(non-condensing)
● Operation Power: 220VAC(±10%)50±3Hz
● Power Consumption: 1.0 KW (max), 0.9KW(working)
● Noise: <58db
